BMW E46 Competition Cooling Kit (1999-05)

0 Reviews
BMW E46 Competition Cooling Kit (1999-05)
BMW E46 Competition Cooling Kit (1999-05)

BMW E46 Competition Cooling Kit (1999-05)

Model Number: radiator-type-18
The E46 Cooling Kit is the ulimate cooling solution for this generation 3 series featuring an aluminum shroud with integrated fan, aluminum expansion tank and our aluminum radiator. [See Full Description Below]

Radiators and shroud kits are built to order. Lead-time varies.
Please select a Transmission
Please select a Wiring Option
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
Your Price: $1,625.00
A one-time price of $1,625.00 will be added to your order.
*A handling fee of $10.00 per item will be added to your shipping total at checkout.
  • Features
  • Description
  • Specifications
  • Customer Reviews (0)
  • Wiring Options
Our radiators are constructed of materials that provide better heat dissipation. For example, PA66 GF30 is a glass reinforced nylon material used by Behr to manufacture O.E. radiator side tanks. UNS A93003 is the aluminum alloy we use in our radiators.

Thermal Conductivity

Specific Heat Capacity

PA66 GF30 0.22 - 0.5 W/m-K PA66 GF30 1.2 - 2.35 J/g °C
UNS A93003 193 W/m-K UNS A93003 0.893 J/g °C

Additionally, our radiators do not become weak or brittle due to constant temperature cycling. Glass reinforced nylon will eventually deteriorate resulting in a cracked or broken radiator neck. This failure has become more common due to the increased temperatures in the current generation of BMW engines. The normal operating temperature of a Double Vanos engine is around 110° C (230° F). Unfortunately, there is no way to tell what the real temperature is in the engine without special equipment. According to the BMW WDS, the instrument cluster temperature display will read normal between 75°-113° C (167°-235.4° F). Nylon just doesn't hold up under these conditions.

In short, our e46 radiator dissipates more heat and it won't break. And should it break, the original purchaser is covered by a lifetime guarantee... even if it's installed in a race car.

A note regarding the No Wiring Kit option: The factory auxiliary fan is operated by a variable speed control box mounted on the rear of the auxiliary fan. If one chooses to delete the auxiliary fan, the Spal fan can be operated by the auxiliary fan control box mounted in an alternative location. This simplifies wiring and eliminates the need to purchase a wiring kit from us. There are two drawbacks. The front end of the car must come apart in order to remove the auxiliary fan. Also, should the control box fail, it is not available as a separate item. It must be purchased with the auxiliary fan.
Fits BMW E46 Coupe 2000 323ci, 2001-05 325ci, 2000 328ci, 2001-05 330ci Convertible 2000 323cic, 2001-02 328cic, 2001-05 330cic Sedan 1999-00 323i, 2001-05 325i, 2001-05 325xi, 1999-00 328i, 2001-05 330i, 2001-05 330xi Touring 2000 323it, 2001-05 325it, 2001-05 325xit Lifetime Warranty! Zionsville Autosport guarantees our radiators for life to the original purchaser. Purchaser must provide proof of BMW coolant use at first installation and once every two years thereafter. Made in the USA with Euro Aluminum Cores.
There are no reviews yet, submit yours in the box provided.
Please sign in or create an account to submit a review for this product.
Alloy Radiator Features
• High Efficiency Fin Design
• Better Heat Dissipating Materials
• Repairable All Alloy Construction
• Greatly Increased Life-Span
• Hand Welded, No Epoxy
• Impact Resistant
• Aluminum Core
• Accepts All Original Equipment
• Tested at 4X Operating Pressure
• Made in the USA

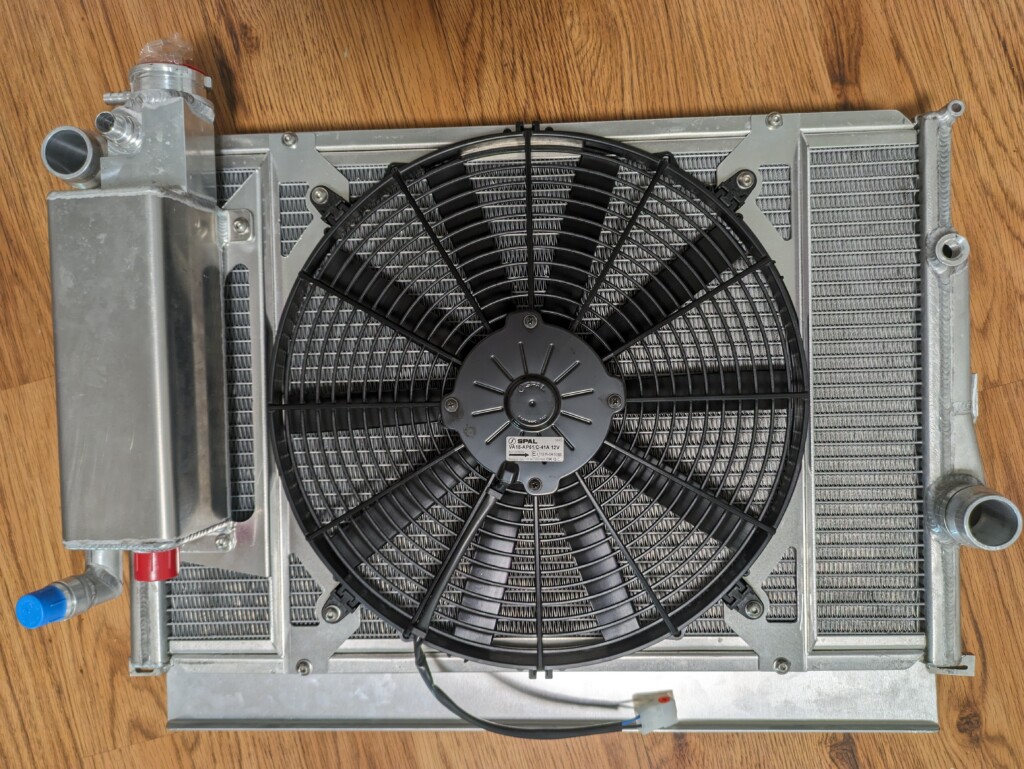

What’s in the Kit?
• Alloy Radiator
• Alloy Fan Shroud
• Alloy Expansion Tank
• High-Pressure Expansion Tank Cap
• Block Off Plate ***
• 16 Inch Spal Electric Fan
• Temperature Switch *
• Sensor Connector *
• Sensor Wire (3) *
• Seal Ring *
• Fan Wiring Kit *
• Resistor **
• Additional Fan Wiring Kit **

* Included in the Single and Dual Speed Fan options.
** Included in the Dual Speed Fan Kit option only.
*** The Block Off Plate can be removed to facilitate an oil cooler.
