BMW E39 - E38 Super Duty Cooling Kit (1995-98)

0 Reviews
$1,528.00
BMW E39 - E38 Super Duty Cooling Kit (1995-98)
BMW E39 - E38 Super Duty Cooling Kit (1995-98)
BMW E39 - E38 Super Duty Cooling Kit (1995-98)
BMW E39 - E38 Super Duty Cooling Kit (1995-98)
BMW E39 - E38 Super Duty Cooling Kit (1995-98)
BMW E39 - E38 Super Duty Cooling Kit (1995-98)

BMW E39 - E38 Super Duty Cooling Kit (1995-98)

$1,528.00
Model Number: radiator-type-10

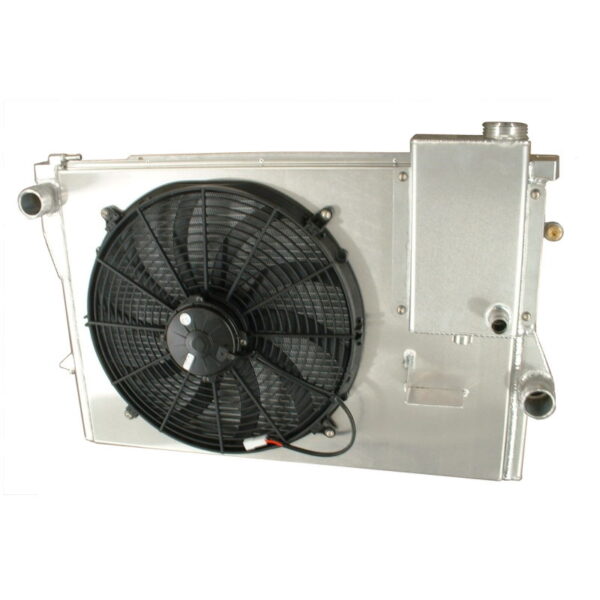

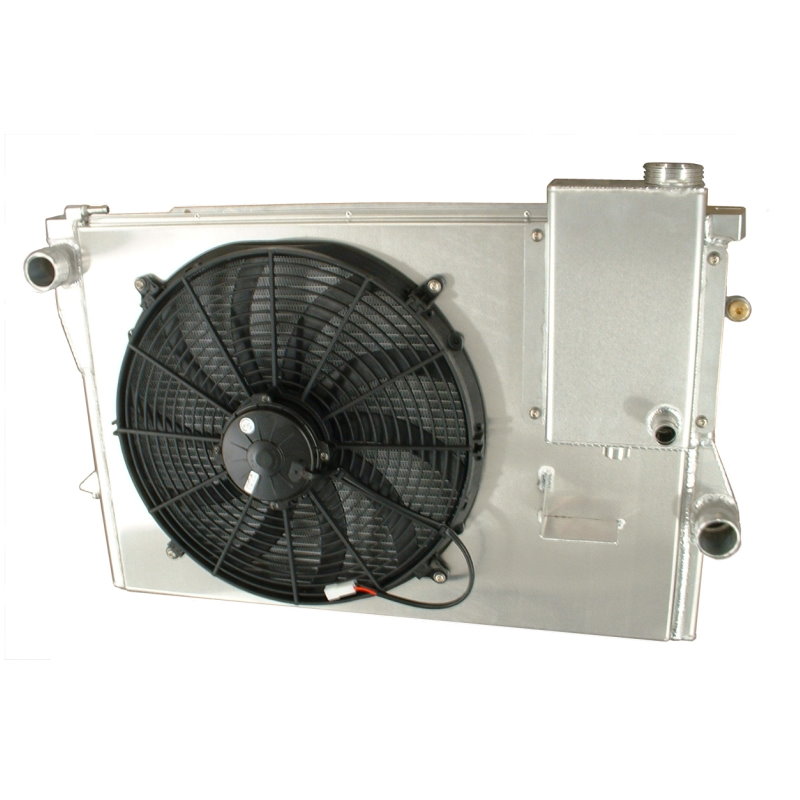

The BMW E39 - E38 Super Duty Cooling Kit is a complete cooling solution for the 1995 to 1998 e38 and e39 series BMWs. It address all of the common failure items; the radiator, the expansion tank and the engine driven fan. [See Full Description Below]

Radiators and shroud kits are built to order. Lead-time varies.
Please select a Year and Engine
Please select a Wiring Option
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
Your Price: $1,528.00
1528.000
A one-time price of $1,528.00 will be added to your order.
*A handling fee of $10.00 per item will be added to your shipping total at checkout.
Facebook
Twitter
Email
Pinterest
Google+
Digg
  • Features
  • Description
  • Specifications
  • Customer Reviews (0)
  • Why You Need It
  • Wiring Options

The E38-E39 Super Duty Cooling Kit... The alloy fan shroud and electric fan work in concert to provide maximum cooling efficiency by pulling 2070 cfm through the radiator core - even while sitting still if required by engine temperature. Simply hanging a fan on a core is inefficient as airflow must be directed through the entire core area, not just directly in front of the fan. The latter approach limits the effectiveness of the core. Essentially, it reduces the core size to the diameter of the fan. Not to mention the fact that hanging a fan through the core will eventually fatigue the cooling tubes and lead to failure.

The alloy shroud in combination with the electric fan creates a low pressure area behind the radiator in order to pull air through the entire core surface. (The front of the core is exposed.) The concept is a refinement of the BMW design. Our kit features improved sealing of the shroud and increased air flow without the parasitic drag of an engine-driven fan. We have also been advised by both customers and technicians that the engine fans are disintegrating at around 100k miles, taking out the cooling system and damaging the hood of the car. Our design incorporates a caged electric fan with a safety shroud and lighter weight individual fan blades. The result is improved safety and efficiency.

With regard to the expansion tank, we have been advised and personally experienced tank failure through rupture of the main expansion tank. Our thinking is that due to higher heat soak temperatures on V8 and V12 cars, the tanks are heated/ pressurized beyond their limits. As a result, we designed an alloy expansion tank with greater resistance to degradation caused by the more extreme temperature limits in V8 and V12 cooling systems. Our tank does incorporate some of BMWs features; e.g., we retain the original cap and the internal plumbing. The cap design is very clever: it facilitates the expansion and contraction of coolant, while at the same time offering an escape route for atmosphere and coolant when pressure in the system threatens passenger well being *** and cooling system integrity. The topping off process requires filling the tank until one half the level is maintained during the initial fill, then topping off after a driving cycle, once the cooling system is cold. As in all our radiators, the alloy construction of the radiator also improves efficiency through an increase of radiant surfaces and enlarged storage capacity.

With the 2 speed fan kit, the fan operates on low speed or high speed based on engine temperature. High speed comes on only when necessary. Running the fan through a resistor allows us to back the speed down when the extra volume is unnecessary, creating less wind noise.

* Otherwise, the heater core could rupture and spray coolant inside the passenger compartment.

Fits BMW E39 1997-98 528i, 1997-98 Fits BMW E38 1995-98 740i, 1995-98 740il, 1995-98 750il Lifetime Warranty! Zionsville Autosport guarantees our radiators for life to the original purchaser. Purchaser must provide proof of BMW coolant use at first installation and once every two years thereafter. Made in the USA with European aluminum cores. Available only through Zionsville Autosport.
There are no reviews yet, submit yours in the box provided.
Please sign in or create an account to submit a review for this product.
Alloy Radiator Features
• Increased Fluid Capacity
• High Efficiency Fin Design
• Better Heat Dissipating Materials
• Repairable All Alloy Construction
• Greatly Increased Life-Span
• Hand Welded, No Epoxy
• Impact Resistant
• Aluminum Core
• Accepts All Original Equipment
• Improved Serviceability with Petcock
• Tested at 4X Operating Pressure
• Broad Application
• Made in the USA

What’s in the Kit?
• Alloy Radiator
• Alloy Fan Shroud
• Alloy Overflow Tank
• 16 Inch Spal Electric Fan
• Coolant Level Sensor
• Rubber Mount (2)
• Petcock Valve ***
• Seal Ring
• Temperature Switch *
• Sensor Connector *
• Sensor Wire (3) *
• Fan Relay Kit *
• Additional Fan Relay Kit **
• Resistor **

* Included in both the Single and Two Speed Fan options.
** Included only if Two Speed Fan option is selected.
*** Not included if automatic hose is selected.
