BMW E36 Super Comp Cooling Kit

0 Reviews
BMW E36 Super Comp Cooling Kit
BMW E36 Super Comp Cooling Kit

BMW E36 Super Comp Cooling Kit

Model Number: zionsville-type-12-radiator
The E36 Super Comp Cooling Kit is designed for maximum cooling protection. This kit includes a specially designed alloy radiator which incorporates an engine oil cooler...If you want the best, this is it. [See Full Description Below]

Radiators and shroud kits are built to order. Lead-time varies.
Please select a Vanos Type
Please select a Wiring Option
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
Your Price: $2,085.00
A one-time price of $2,085.00 will be added to your order.
*A handling fee of $10.00 per item will be added to your shipping total at checkout.
  • Features
  • Description
  • Specifications
  • Customer Reviews (0)
  • Wiring Options
The E36 Super Comp Cooling Kit is designed for maximum cooling protection. This kit includes a specially designed alloy radiator which incorporates an engine oil cooler. In order to eliminate another weak link in the cooling system, we have designed an aluminum expansion tank which mounts to the integrated aluminum fan shroud. The shroud itself provides a stable platform on which to install the fourteen inch Spal puller fan. (Hanging a fan directly on the core is a bad idea.) Another unique feature is the addition of cooling flaps in the shroud which open up at higher speeds to improve air flow. This setup allows for the removal of the engine driven fan and clutch as well as the auxiliary fan in front of the radiator. If you want the best, this is it.

A number of things contribute to cooling efficiency, e.g.; fluid capacity, fin design, material, etc. Zionsville Autosport's Alloy Radiator has a core thickness of 33 mm. It is important to note that core area takes priority over core thickness. As a general rule, the core area in square inches should be greater than the engine displacement plus fifty. For example, the 3.2 S52 motor is approximately 200ci. In order for a radiator to efficiently cool this engine, the core area should be at least 250 square inches. The surface area of ZA's Alloy Radiator is 374 square inches.

ZA's Alloy Radiators also use a high efficiency core similar to a stock radiator. High efficiency cores have more fins per inch, more tubes per core and more cooling capacity. Each row has a single, large tube. The flat side of the tube is in direct contact with the fins which transfers heat from the tube walls to the fins. Since the rounded ends of the tube are not in direct contact with the fin, this portion of the tube does not aid in secondary cooling. The more tubes per row, the more rounded ends, and the less direct contact there is between the tubes and the fins. ZA uses a single tube for better heat dissipation.

Cooling improvement also comes from larger radiant surfaces on the tanks. The alloy tanks themselves have a high level of thermal conductivity which helps to dissipate heat into air instead of back into the engine. In addition, the tanks on ZA's Alloy Radiator are larger than the tanks on a stock radiator. This results in a 65% increase in coolant capacity.
Fits BMW E36 1998-99 323is, 1992-95 325i, 1992-95 325is, 1996-98 328i, 1996-99 328is, 1995-99 M3, 1994-95 325i Conv., 1998-99 323i Conv., 1996-99 328i Conv., 1998-1999 M3 Conv. Lifetime Warranty! Zionsville Autosport guarantees our radiators for life to the original purchaser. Purchaser must provide proof of BMW coolant use at first installation and once every two years thereafter. Made in the USA with Euro Aluminum Cores. Available only through Zionsville Autosport.
There are no reviews yet, submit yours in the box provided.
Please sign in or create an account to submit a review for this product.
Alloy Radiator Features
• 65% Increase in Fluid Capacity
• High Efficiency Fin Design
• Better Heat Dissipating Materials
• Repairable All Alloy Construction
• Greatly Increased Life-Span
• Hand Welded, No Epoxy
• Impact Resistant
• Aluminum Core
• Accepts All Original Equipment
• Improved Serviceability with Petcock
• Tested at 4X Operating Pressure
• Broad Application
• Made in the USA

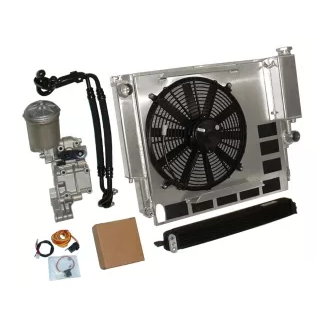

What’s in the Kit?
• Specially Designed Alloy Radiator
• Integrated Aluminum Fan Shroud
• Cooling Flaps to Aid Air Flow
• Integrated Aluminum Expansion Tank
• Aluminum Expansion Tank Cap
• 14 Inch Spal Puller Fan
• Oil Canister
• Oil Cooler
• Oil Lines
• Oil Switches
• All Hardware and Seals
