BMW Compact Competition Cooling Kit

$1,270.00
BMW Compact Competition Cooling Kit
BMW Compact Competition Cooling Kit

BMW Compact Competition Cooling Kit

$1,270.00
Model Number: radiator-type-20
Our type 20 radiator is now available. It's the first kit for owners of 4 cylinders who would like to upgrade the quality and appearance of their cooling systems. However, the Type 20 is not limited to 4 cylinder applications. The core size is spec for European E36 6 cylinders. This configuration allows for additional clearance, which is required by many aftermarket forced induction kits, while retaining the 16" fan. [See Full Description Below]

Radiators and shroud kits are built to order. Lead-time varies.
Please select an Install Kit
Please select a Wiring Option
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
Your Price: $1,270.00
1270.000
A one-time price of $1,270.00 will be added to your order.
*A handling fee of $10.00 per item will be added to your shipping total at checkout.
Facebook
Twitter
Email
Pinterest
Google+
Digg
  • Features
  • Description
  • Specifications
  • Wiring Options

Our type 20 radiator is now available. It's the first kit for owners of 4 cylinders who would like to upgrade the quality and appearance of their cooling systems. However, the Type 20 is not limited to 4 cylinder applications. The core size is spec for European E36 6 cylinders. This configuration allows for additional clearance, which is required by many aftermarket forced induction kits, while retaining the 16" fan.

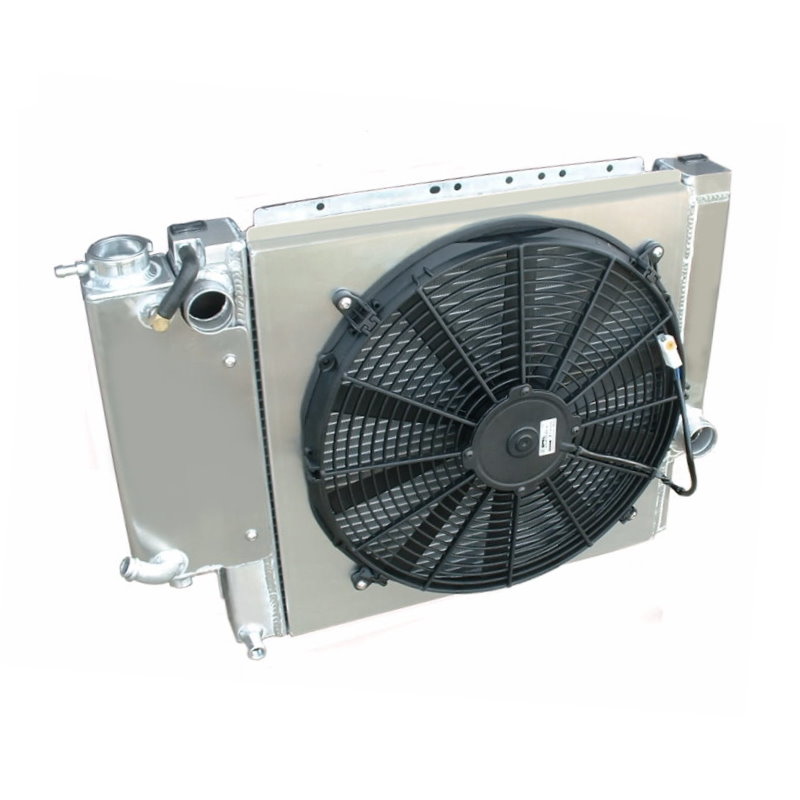

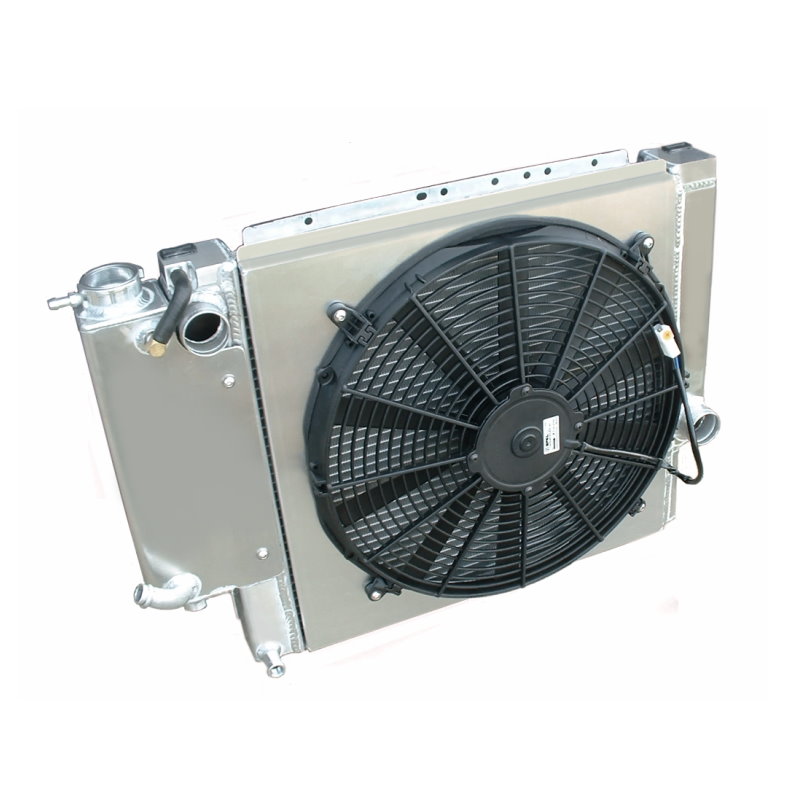

Designed around a high efficiency European core, this radiator will improve both cooling capacity and safety for years to come. The type 20 includes a 16" Spal fan that is rated at 1300 CFM, which is mounted on an alloy shroud. The purge tank uses our own neck design, permitting a discreet vent and high performance cap. By running a tube from the vent port to the exterior of the car, vented gases can be seen by the driver immediately warning of engine problems. NASCAR fans will recognize the virtue of this little trick.

Also, the purge tank is plumbed for a petcock and level sensor. Note the engine fill line is canted toward the rail reducing space requirements and smoothing out the flow of the line. The right tank is fitted with a bung for the fan control switch.

Finally, this kit replaces the factory plastic shroud, which increases front engine access--especially in 4 cylinder applications. The mechanical engine fan and clutch are also removed, freeing up horse power and reducing stress on the water pump.

Fits BMW E30 M42 1991 318is, 1991-92 318ic Fits BMW E36 M42/M44 1992-97 318i, 1992-97 318is, 1995-99 318ti, M50 1992-95 325i, 1992-95 325is, 1998-99 323is, M52 1996-98 328i, 1996-99 328is, S50/S52 1995-99 M3 Fits BMW E36 M44 1996-98 Z3 1.9, M54 1999-00 Z3 2.3, 2001-02 Z3 2.5, 2001-02 Z3 3.0, 2001-02 Z3 3.0 Coupe Lifetime Warranty! Zionsville Autosport guarantees our radiators for life to the original purchaser. Purchaser must provide proof of BMW coolant use at first installation and once every two years thereafter. Made in the USA with Euro Aluminum Cores.
Alloy Radiator Features
• High Efficiency Fin Design
• Better Heat Dissipating Materials
• Repairable All Alloy Construction
• Greatly Increased Life-Span
• Hand Welded, No Epoxy
• Impact Resistant
• Aluminum Core
• Improved Serviceability with Petcock
• Tested at 4X Operating Pressure
• Broad Application
• Made in the USA

What’s in the Kit?
M42/M44
• Aluminum Radiator (1)
• Aluminum Shroud (1)
• Aluminum Expansion Tank (1)
• 16 IN Spal Fan (1)
• Petcock (1)
• Seal (1)
• Teflon Tape (1)
• Purge Line 8MM (1)
• Radiator Cap (1)
• Hose Clamp (1)
• Cap – Sensor Level Port (1)
• 90 Degree Elbow (1)
• Hose Clamp (3)
• Purge line L (1)

M50/52, S50/52
• Aluminum Radiator (1)
• Aluminum Shroud (1)
• Aluminum Expansion Tank (1)
• 16 IN Spal Fan (1)
• Petcock (1)
• Seal (1)
• Teflon Tape (1)
• Purge Line 8MM (1)
• Radiator Cap (1)
• Hose Clamp (1)
• Upper Hose (1)
• 90 Degree Elbow (1)
• Hose Clamp (3)
• Purge line L (1)
• Bracket (1)

M54 Z3
• Aluminum Radiator (1)
• Aluminum Shroud (1)
• Aluminum Expansion Tank (1)
• 16 IN Spal Fan (1)
• Petcock (1)
• Seal (1)
• Teflon Tape (1)
• Purge Line 8MM (1)
• Radiator Cap (1)
• Hose Joint (1)
• Fill Line 1 (1)
• Fill Line 2 (1)
• Hose Clamp (1)
• Cap – Sensor Level Port (1)
• Upper Hose (1)
• 90 Degree Elbow (1)
• Hose Clamp (3)
• Purge line L (1)
• Bracket (1)
